Surface Mount Fast Recovery Rectifier Diode RS2M 2A 1000V SMB DO-214AA Package
RS2A THRU RS2M
SURFACE MOUNT FAST RECOVERY RECTIFIER
Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Amperes
| Type | Io | VRRM | IFSM | VF | IR | Trr | Package Outline |
| (A) | (V) | (A) | (V) | IF(A) | (uA) | VR(V) | (ns) |
| RS1A | 1 | 50 | 30 | 1.3 | 1 | 5 | 50 | 150 | SMA |
| RS1B | 1 | 100 | 30 | 1.3 | 1 | 5 | 100 | 150 | SMA |
| RS1D | 1 | 200 | 30 | 1.3 | 1 | 5 | 200 | 150 | SMA |
| RS1G | 1 | 400 | 30 | 1.3 | 1 | 5 | 400 | 150 | SMA |
| RS1J | 1 | 600 | 30 | 1.3 | 1 | 5 | 600 | 250 | SMA |
| RS1K | 1 | 800 | 30 | 1.3 | 1 | 5 | 800 | 500 | SMA |
| RS1M | 1 | 1000 | 30 | 1.3 | 1 | 5 | 1000 | 500 | SMA |
| RS2A | 2 | 50 | 60 | 1.3 | 2 | 5 | 50 | 150 | SMB |
| RS2B | 2 | 100 | 60 | 1.3 | 2 | 5 | 100 | 150 | SMB |
| RS2D | 2 | 200 | 60 | 1.3 | 2 | 5 | 200 | 150 | SMB |
| RS2G | 2 | 400 | 60 | 1.3 | 2 | 5 | 400 | 150 | SMB |
| RS2J | 2 | 600 | 60 | 1.3 | 2 | 5 | 600 | 250 | SMB |
| RS2K | 2 | 800 | 60 | 1.3 | 2 | 5 | 800 | 500 | SMB |
| RS2M | 2 | 1000 | 60 | 1.3 | 2 | 5 | 1000 | 500 | SMB |
| RS3A | 3 | 50 | 90 | 1.3 | 3 | 5 | 50 | 150 | SMC |
| RS3B | 3 | 100 | 90 | 1.3 | 3 | 5 | 100 | 150 | SMC |
| RS3D | 3 | 200 | 90 | 1.3 | 3 | 5 | 200 | 150 | SMC |
| RS3G | 3 | 400 | 90 | 1.3 | 3 | 5 | 400 | 150 | SMC |
| RS3J | 3 | 600 | 90 | 1.3 | 3 | 5 | 600 | 250 | SMC |
| RS3K | 3 | 800 | 90 | 1.3 | 3 | 5 | 800 | 500 | SMC |
| RS3M | 3 | 1000 | 90 | 1.3 | 3 | 5 | 1000 | 500 | SMC |
Mechanical Characteristics
Case: JEDEC DO-214AA molded plastic body
Terminals: Solder plated , solderable per MIL-STD-750,
Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight:0.005 ounce, 0.138 grams
Features
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
For surface mounted applications
Fast switching for high efficiency
Low reverse leakage
Built-in strain relief,ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds at terminals
Electrical Characteristics
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
| | SYMBOLS | RS2A | RS2B | RS2D | RS2G | RS2J | RS2K | RS2M | UNITS |
| Maximum repetitive peak reverse voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | VOLTS |
| Maximum RMS voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | VOLTS |
| Maximum DC blocking voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | VOLTS |
Maximum average forward rectified current at TL=90 C | I(AV) | 2 | Amps |
| Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) | IFSM | 50 | Amps |
| Maximum instantaneous forward voltage at 2.0A | VF | 1.3 | VOLTS |
| Maximum DC reverse current TA=25 at rated DC blocking voltage TA=100℃ | IR | 5.0 50.0 | µA |
| Maximum reverse recovery time (NOTE 1) | trr | 150 | 250 | 500 | ns |
| Typical junction capacitance (NOTE 2) | CJ | 50.0 | pF |
| Typical thermal resistance (NOTE 23) | RθJA | 20.0 | ℃/W |
| Operating junction and storage temperature range | TJ,TSTG | -65 to +150 | ℃ |
Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas

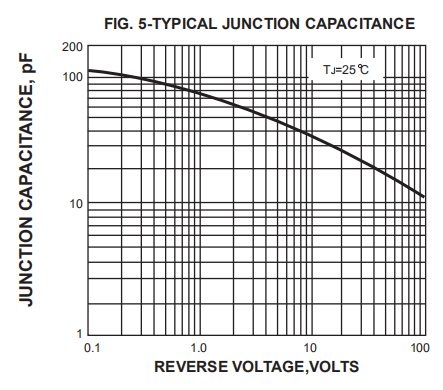

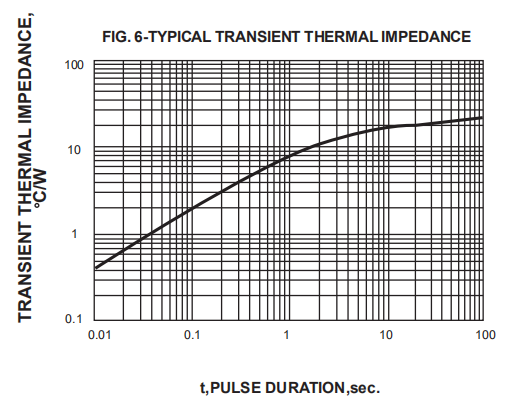

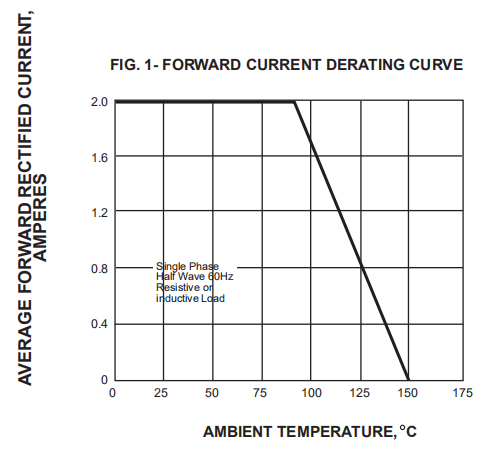

Characteristic Curves
